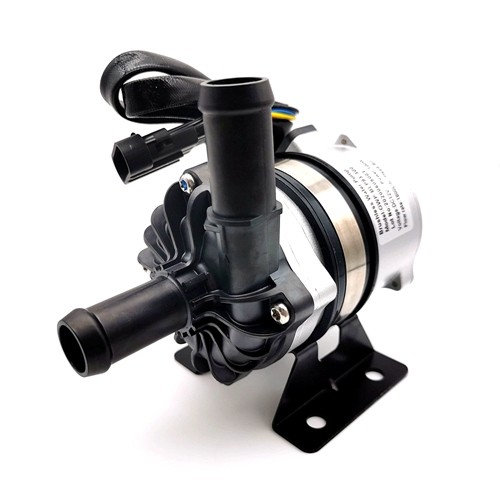

Automotive Water Pump 12V 24V DC 100W EWP For HEV PHEV Vehicle
Features:
◆Centrifugal pump
◆Magnetic force transmission (shield pump structure)Automotive Water Pump 12V 24V DC 100W EWP For HEV PHEV Vehicle.
◆High efficiency brushless DC motor, low power consumption, high efficiency, long service life.
◆With wide range operating temperature
◆PWM signal speed controlling
◆With constant flow controlling
◆Reverse polarity protection
◆Dry running protection
◆Over Voltage, over current protection
◆Overload, over temperature protection
Product description:
1.OWP-BL93-300/301 series BLDC water pump with a wide working voltage range of 9-16V/18-30V, this pump is suitable for various power systems commonly found in these transportation modes.
2.At a rate power of 100W, this electric water pump delivers impressive performance while consuming minimal energy, ensuring optimal efficiency. The pump is engineered to accommodate high flow requirements, boasting a rate flow of 1800L/H (liters per hour) and a maximum head height of 9 meters. This enables the pump to handle substantial water volumes and provide sufficient water pressure for various applications.
3.Despite its remarkable capabilities, this electric water pump is incredibly lightweight, weighing just 1.12 kilograms. Its compact and space-efficient design allows for easy installation and integration into different vehicles and vessels.
4.Equipped with a 22.4mm nozzle diameter (with an inner diameter of 16mm), the pump facilitates efficient water flow through the system, ensuring smooth operation and effective cooling or circulation.
5.Whether this automotive BLDC water pump cooling hybrid engines, managing water circulation in electric vehicles, maintaining optimal temperatures in train systems, or supporting various marine applications, this electric water pump is a reliable and indispensable component for a wide range of transportation needs. With its robust performance, energy efficiency, compactness, and versatility, it guarantees exceptional functionality and durability in demanding environments.
■ Technical description (related parts in contact with the liquid)
Pump head housing: PPS+GF
Impeller: PPS+GF
Shield cavity: PPS+GF
Shaft sleeve: Carbon resin composite materials
Shaft: stainless steel shaft
Magnet housing: nylon plastic capsulation
Seal ring: EPDM
■ Driving device (Including motor)
Driving electromagnet: nylon plastic capsulated magnet
Screws and nuts: SUS 304 stainless steel
Driving Motor: brushless motor
Motor wire frame :PPA GF
Pump housing: Die-casting aluminum case with sandblasting and impregnation treatment
Bracket: Steel with powder coating
Bracket hoop: US 304 stainless steel+ Damping rubber ring
Waterproof based on IP68 rating (en60529)

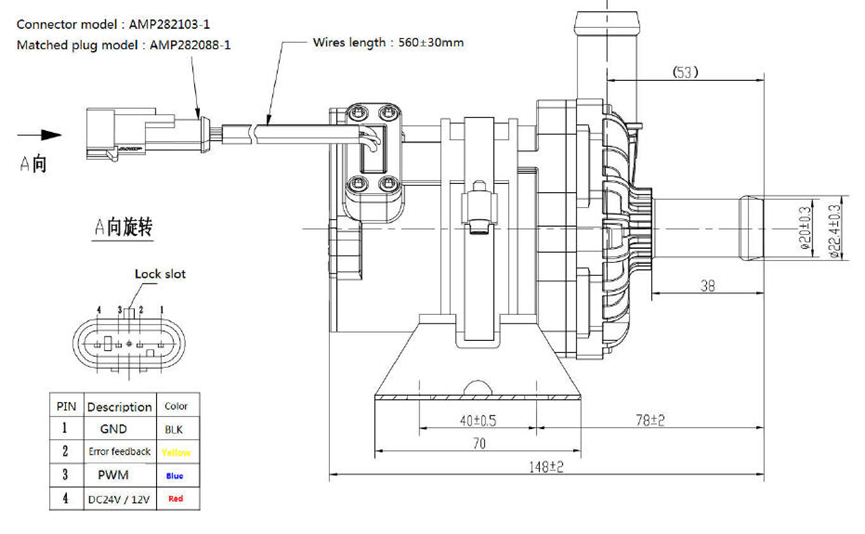

Connector model: AMP282106-1(matched Plug AMP282088-1)
Nozzle diameter:22.4mm (inner diameter:16mm)
■ Model Specifications
OWP-BL93-300-(12VDC)
OWP-BL93-301-(24VDC)

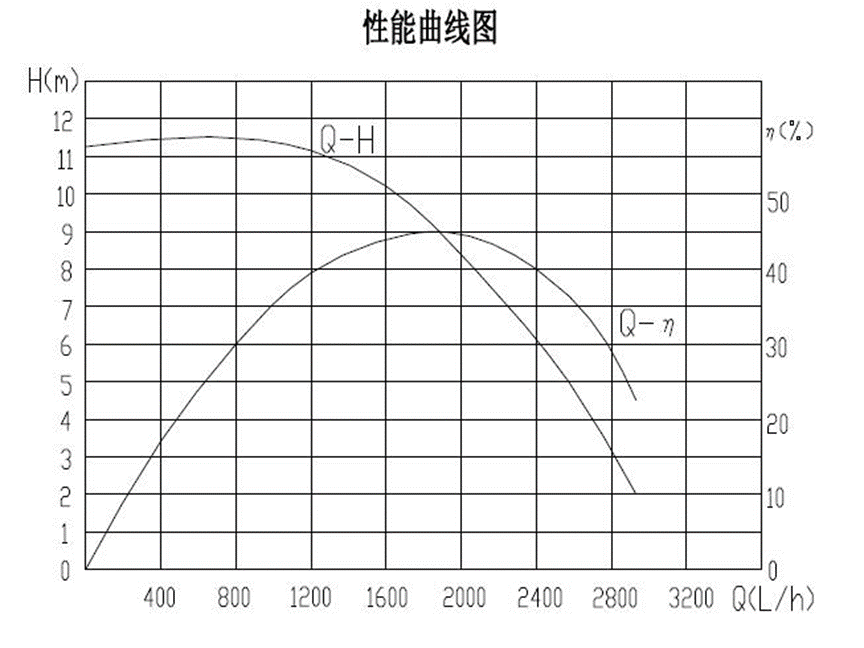

■ Performance parameter
■ Electrical parameter of this automotive water pump

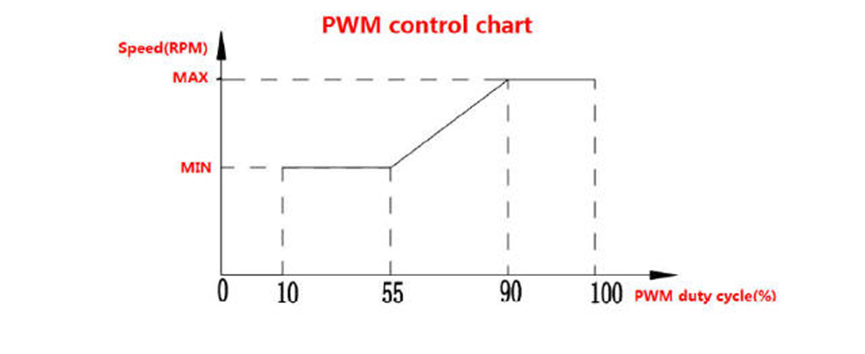

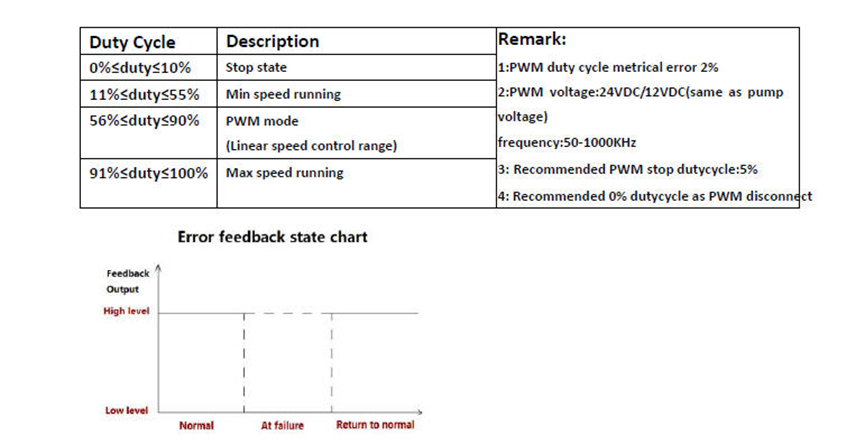

■PWM character of speed regulation

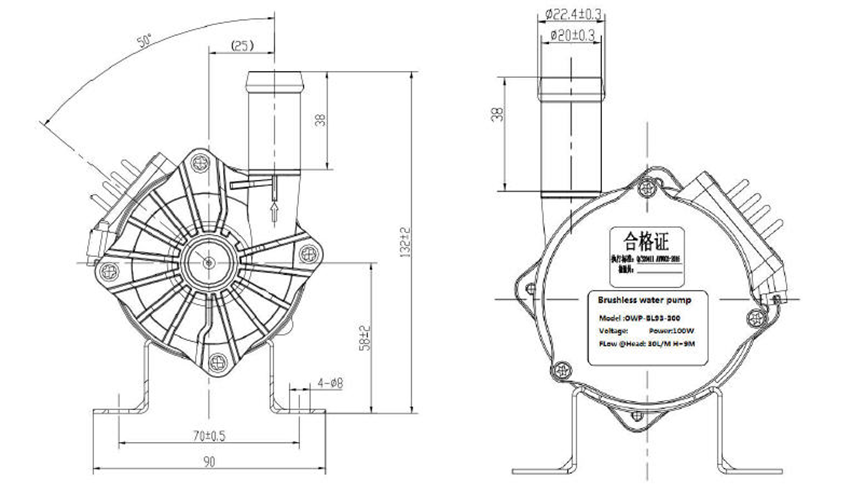

Dimensional drawing:
