12V-36V Brushless DC Motor Driver Board JYQD-V7.3E2 For Balance Scooter

Name: 12V36V Brushless DC Motor Driver Board JYQDV73E2 For Balance Scooter
Brand: Bextreme Shell
Price: 1 USD

China 12V-36V Brushless DC Motor Driver Board JYQD-V7.3E2 For Balance Scooter wholesale

Brand Name : Bextreme Shell

Model Number : JYQD-V7.3E2

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T

Supply Ability : 1000 pcs per day

Delivery Time : 5-30days

Packaging Details : Carton+packing foams

Operating voltage : 12V-36V

Operating current : 1-15A

Sensor : Hall sensor

Size : 63X42.5X17mm (L*W*H)

Speed control : 0.1V-5V or PWM input

Net weight : 55g

Contact Now

12V,24V,36V,5A,10A,15A 500W brushless DC motor driver,Hall sensor,brushless DC motor speed controller

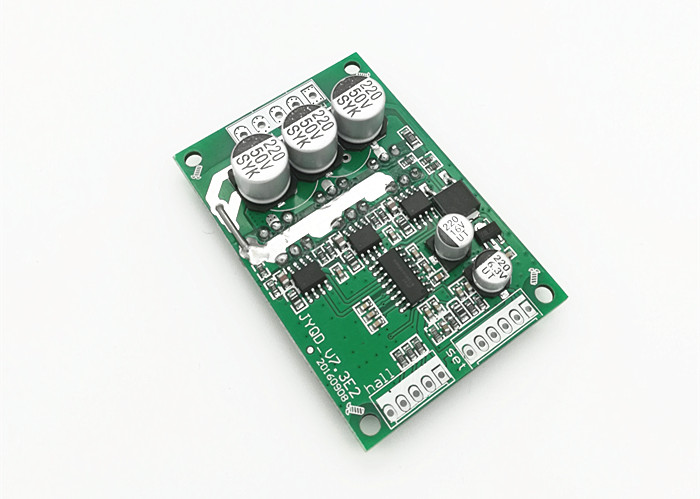

12V-36V Brushless DC Motor Driver Board JYQD-V7.3E2 for balance scooter

ATTENTION:

1: This brushless DC motor driver board is widely apply to DC Brushless with Hall sensor (120°angle) three-wire motors
2:please make sure to add heat sink when the output power more than 60W.

When installing the heat sink, please add insulation layer for 6pcs MOS. It will damage the driver board permanently without insulation,and also apply Heat-Conducting Silicone Grease on the insulation for better cooling.

3: As the BLDC motor factory may use different Hall sequence,if the motor start abnormal, can't start or the current getting to high, please adjust the sequence of the Hall, or the driver will be damaged.

4:Please offer the right voltage to the driver, do not exceed the operating range. and the driver has built-in 5V for speed control, DO NOT connect extra power supply( 5V ) into the driver for speed controlling, it will damage the driver.

12V-36V Brushless DC Motor Driver Board JYQD-V7.3E2 For Balance Scooter

Specifications

Operating Voltage	DC 12V-36V
Operating current	≤15A
Output power	≤500W
Speed control	0.1V-5V or PWM input
Operating temperature	-40-85℃
Operating humidity	≤90%
Protection	Overload protection, locked-rotor protection, over-current protection
Functions	Speed pulse signal output, soft reversing (485,CAN port optional)
Overall dimension	63X42.5X17mm (LWH)
Net weight	55 g
Optional component	Speed regulating potentiometer external 5 digit tachometer

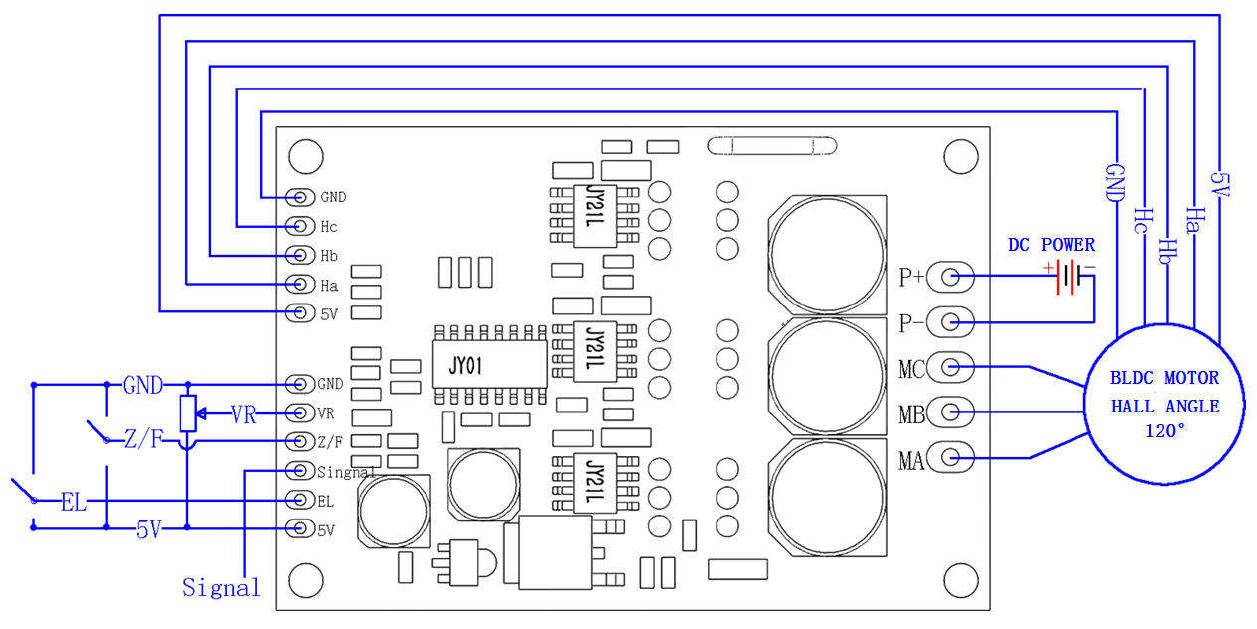

Wiring instructions

12V-36V Brushless DC Motor Driver Board JYQD-V7.3E2 For Balance Scooter

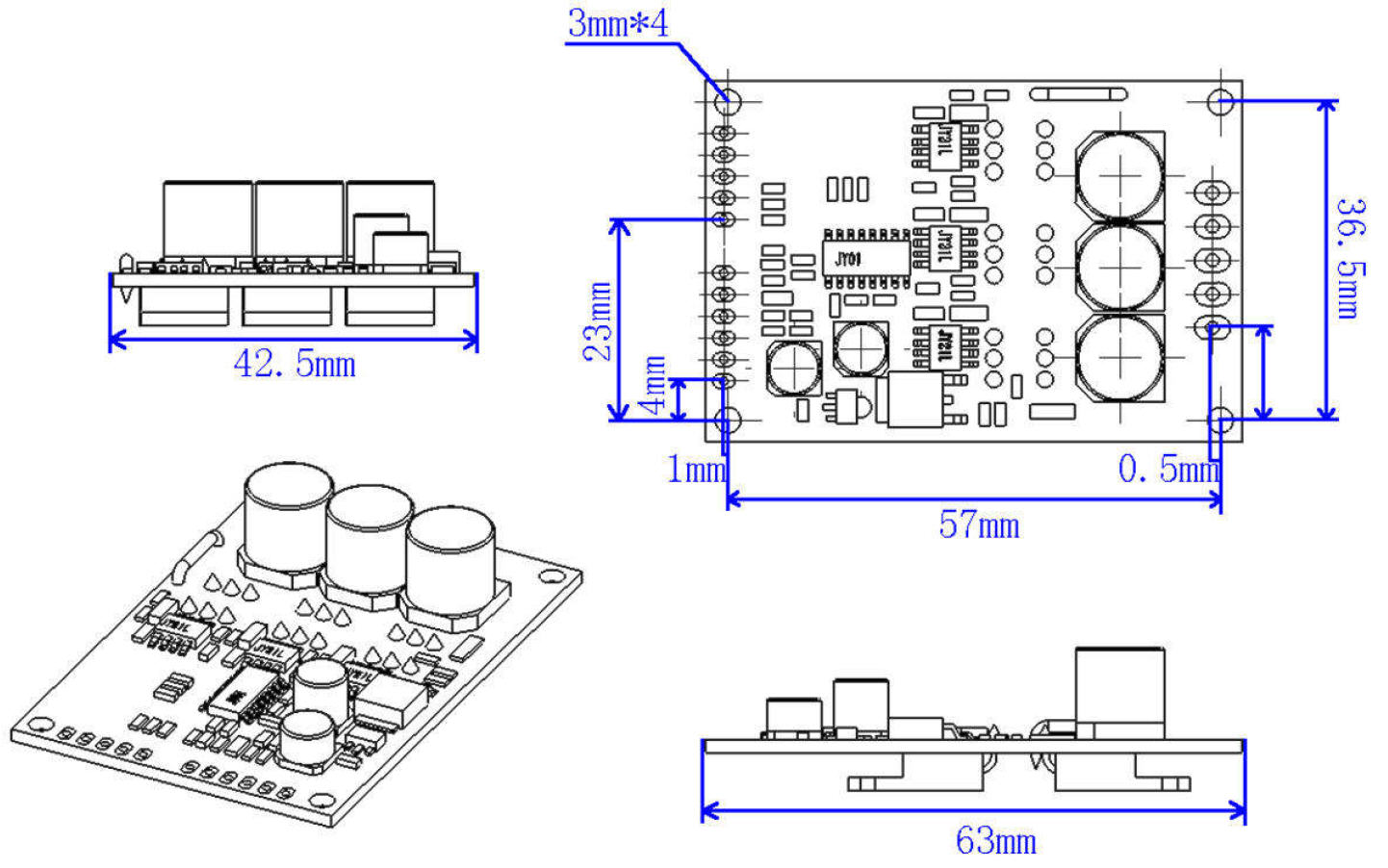

Mounting dimension

12V-36V Brushless DC Motor Driver Board JYQD-V7.3E2 For Balance Scooter
